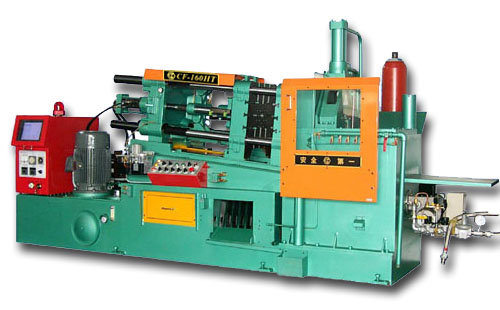

CF-160HT
Heating Chamber Fully Automatic Die Casting
Machine
|
|
High Image
SPECIFICATION
|
Clamping system
|
|
Locking force
|
Ton |
160 |
|
Tie bar diameter
|
mm |
90 |
|
Die platen size
(H*V) |
mm |
750 x 750
|
|
Between tie bar
(H*V) |
mm |
480 x 480
|
|
Die plunger stroke
|
mm |
300 |
|
Thickness of die
|
mm |
200 ~ 500
|
|
Injection
system
|
|
Injection force
|
Ton |
11 |
|
Injection stroke
|
mm |
153 |
|
Plunger tip
diameter
|
mm |
70 |
Casting capacity
(70%)
|
kgs |
2.8 |
|
Melting pot
capacity
|
kgs |
550 |
|
Nozzle to center
|
mm |
-105 |
|
Casting area
|
cm2 |
550 |
|
Casting pressure
|
kgs/ cm2
|
291 |
|
Ejector force
|
|
Ejector force
|
Ton |
10 |
|
Ejector stroke
|
mm |
100 |
|
Hydraulic
system
|
|
Casting cycle
|
cycle/min
|
8 |
|
Unit pressure
|
kgs/ cm2
|
90 |
|
Oil tank capacity
|
litter |
405 |
|
Electrical
system
|
|
Motor style
|
hp |
25 |
|
Electric and power
|
V/Hz |
220V~380V /
50~60Hz
|
|
Mhine measure
|
|
Overall dimensions
|
mm |
4300 x 1300 x 2500
|
|
Machine weight
(net)
|
Ton |
9.2 |
|
|
|
|
|
|
