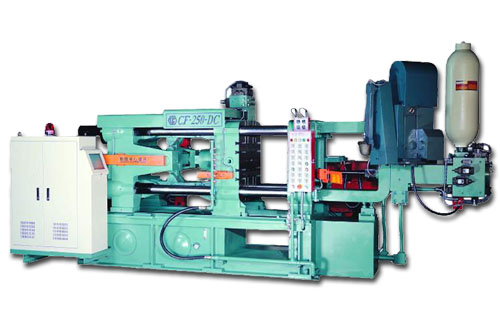

CF-250DC
Cold Chamber Fully Automatic Die Casting Machine
|
|
High Image
SPECIFICATION
|
Clamping system |
|
Locking force |
Ton |
250 |
|
Tie bar diameter |
mm |
110 |
|

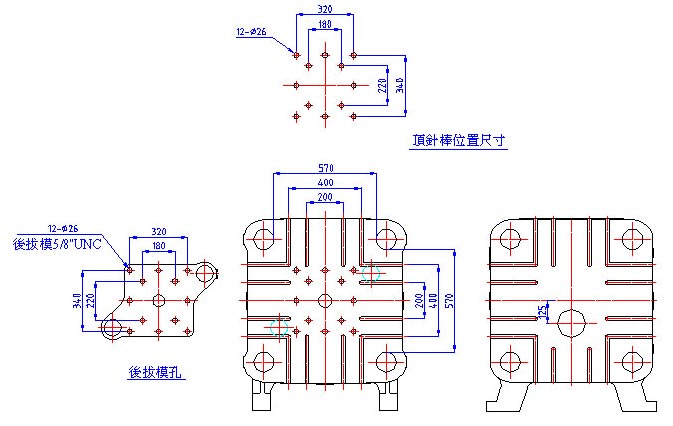

Die platen size (H*V) |
mm |
900 x 900
|
|
Between tie bar (H*V) |
mm |
570 x 570
|
|
Die plunger stroke |
mm |
380 |
|
Thickness of die |
mm |
250 ~ 600
|
|
Injection system |
|
Injection force |
Ton |
10 |
|
增壓比
|
|
1 : 2 |
|
Injection stroke |
mm |
420 |
|
Plunger tip diameter |
mm |
60 |
|
Casting capacity
(70%) |
kgs |
2.3 |
|
Nozzle to center
|
mm |
-125 |
|
Casting area
|
cm2 |
696 |
|
Casting areas
|
cm2 |
348 |
|
Casting pressure
|
kgs/ cm2
|
359 |
|
Casting pressure
|
kgs/ cm2
|
718 |
|
Ejector force |
|
Ejector force |
Ton |
13.8 |
|
Ejector stroke |
mm |
110 |
|
Hydraulic system |
|
Casting cycle |
cycle/min |
6 |
|
Unit pressure |
kgs/ cm2 |
90 |
|
Oil tank capacity |
litter |
630 |
|
Electrical system |
|
Motor style |
hp |
25 |
|
Electric and power |
V/Hz |
220V~380V / 50~60Hz |
|
Mhine measure |
|
Overall dimensions |
mm |
5520 x 1750 x 2850
|
|
Machine weight (net) |
Ton |
11.7 |
|
|
|
|
|
|
