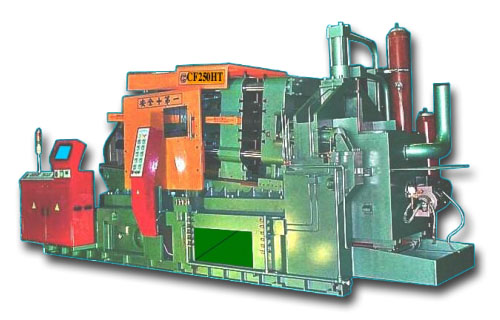

CF-250HT
Heating Chamber Fully Automatic Die Casting
Machine
|
|
High Image
SPECIFICATION
|
Clamping system |
|
Locking force |
Ton |
250 |
|
Tie bar diameter |
mm |
110 |
|

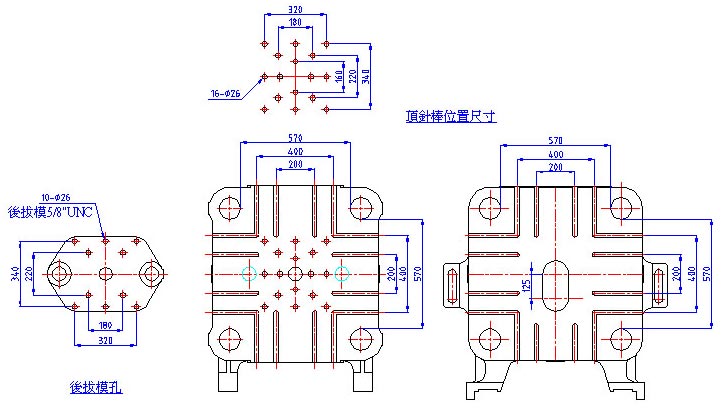

Die platen size (H*V) |
mm |
900 x 900 |
|
Between tie bar (H*V) |
mm |
570 x 570 |
|
Die plunger stroke |
mm |
380 |
|
Thickness of die |
mm |
200 ~ 600 |
|
Injection
system
|
|
Injection force |
Ton |
10(4.6) |
|
Injection stroke |
mm |
185 |
|
Plunger tip diameter |
mm |
75 |
Casting capacity (70%) |
kgs |
3.9 |
|
Melting pot capacity |
kgs |
650 |
|
Nozzle to center |
mm |
-125 |
|
Casting area |
cm2 |
1082(814) |
|
Casting pressure |
kgs/ cm2 |
231(307) |
|
Ejector force
|
|
Ejector force |
Ton |
14 |
|
Ejector stroke |
mm |
110 |
|
Hydraulic
system
|
|
Casting cycle |
cycle/min |
8 |
|
Unit pressure |
kgs/ cm2 |
90(130) |
|
Oil tank capacity |
litter |
560 |
|
Electrical
system
|
|
Motor style |
hp |
30 |
|
Electric and power |
V/Hz |
220V~380V / 50~60Hz |
|
Mhine measure
|
|
Overall dimensions |
mm |
5600 x 2155 x 2640
|
|
Machine weight (net) |
Ton |
15 |
|
|
|
|
|
|
