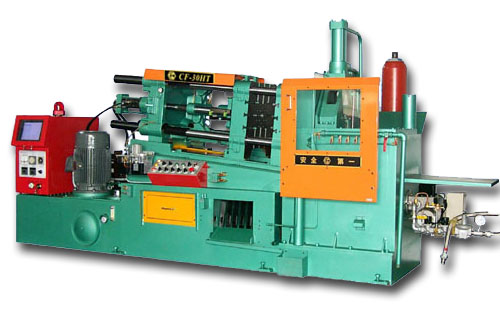

CF-30HT
Heating Chamber Fully Automatic Die Casting Machine
|
|
High Image
SPECIFICATION
|
Clamping
system
|
|
Locking force |
Ton |
30 |
|
Tie bar diameter |
mm |
55 |
|

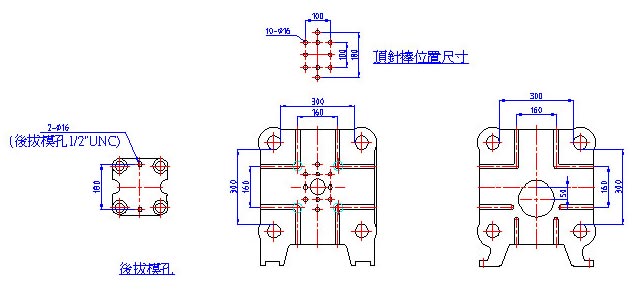

Die platen size (H V) |
mm |
480 x 480 |
|
Between tie bar (H V) |
mm |
300 x 300 |
|
Die plunger stroke |
mm |
185 |
|
Thickness of die |
mm |
120~300 |
|
Injection
system
|
|
Injection force |
Ton |
3.9 |
|
Injection stroke |
mm |
120 |
|
Plunger tip diameter |
mm |
45 |
Casting capacity (70%) |
kgs |
0.9 |
|
Melting pot capacity |
kgs |
315
|
|
Nozzle to center |
mm |
-50 |
|
Casting area |
cm2 |
121 |
|
Casting pressure |
kgs/
cm2 |
248 |
|
Ejector
force
|
|
Ejector force |
Ton |
3.5 |
|
Ejector stroke |
mm |
50 |
|
Hydraulic
system
|
|
Casting cycle |
cycle/min |
14
|
|
Unit pressure |
kgs/
cm2 |
90
|
|
Oil tank capacity |
litter |
180 |
|
Electrical
system
|
|
Motor style |
hp |
7.5 |
|
Electric and power |
V/Hz |
220V-380V/50-60Hz |
|
Machine
measure
|
|
Overall dimensions |
mm |
3730 x 1400 x 1890 |
|
Machine weight (net) |
Ton |
4.3 |
|
|
|
|
|
|
Cheng Feng Machinery Works Co., Ltd.
No. 357, Dake Rd., Taishan Dist., New Taipei City 243, Taiwan
TEL:886-2-22963737 FAX:886-2-22963030
E-mail: sales@cf-tw.com
http://www.cf-tw.com
