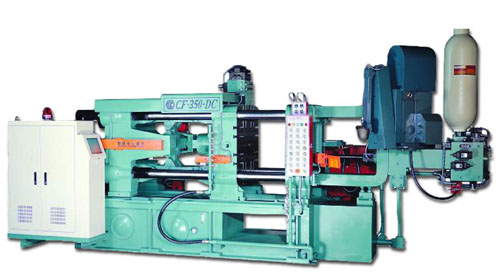

CF-350DC
Cold Chamber Fully Automatic Die Casting Machine
|
|
High Image
SPECIFICATION
|
Clamping system
|
|
Locking force
|
Ton |
350 |
|
Tie bar diameter
|
mm |
125 |
|
Die platen size
(H*V) |
mm |
1010 x 1010
|
|
Between tie bar
(H*V) |
mm |
655 x 655
|
|
Die plunger stroke
|
mm |
420 |
|
Thickness of die
|
mm |
300 ~ 700
|
|
Injection system
|
|
Injection force
|
Ton |
12 |
|
增壓比
|
|
1 : 2 |
|
Injection stroke
|
mm |
500 |
|
Plunger tip diameter
|
mm |
70 |
|
Casting capacity
(70%) |
kgs |
3 |
|
Nozzle to center
|
mm |
-150 |
|
Casting area
|
cm2 |
1129 |
|
Casting areas
|
cm2 |
565 |
|
Casting pressure
|
kgs/ cm2
|
310 |
|
Casting pressure
|
kgs/ cm2
|
620 |
|
Ejector force
|
|
Ejector force
|
Ton |
20 |
|
Ejector stroke
|
mm |
120 |
|
Hydraulic system
|
|
Casting cycle
|
cycle/min
|
6 |
|
Unit pressure
|
kgs/ cm2
|
90 |
|
Oil tank capacity
|
litter |
1000 |
|
Electrical system
|
|
Motor style
|
hp |
30 |
|
Electric and power
|
V/Hz |
220V~380V / 50~60Hz
|
|
Mhine measure
|
|
Overall dimensions
|
mm |
6500
x 1900 x 3000
|
|
Machine weight (net)
|
Ton |
15 |
|
|
|
|
|
|
