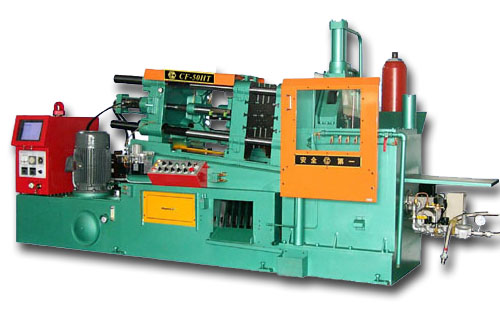

CF-50HT
Heating Chamber Fully Automatic Die Casting Machine
|
|
High Image
SPECIFICATION
|
Clamping
system |
|
Locking
force |
Ton
|
50
|
|
Tie bar
diameter |
mm
|
65
|
|
Die platen
size (H*V) |
mm
|
540 x 540
|
|
Between
tie bar (H*V) |
mm
|
335 x 335
|
|
Die plunger
stroke |
mm
|
220
|
|
Thickness
of die |
mm
|
140 ~ 355
|
|
Injection
system |
|
Injection
force |
Ton
|
5.1
|
|
Injection
stroke |
mm
|
150
|
|
Plunger
tip diameter |
mm
|
50
|
Casting capacity
(70%) |
kgs
|
1.4
|
|
Melting
pot capacity |
kgs
|
370
|
|
Nozzle to
center |
mm
|
-55
|
|
Casting
area |
cm2
|
195
|
|
Casting
pressure |
kgs/ cm2
|
257
|
|
Ejector
force |
|
Ejector
force |
Ton
|
5.7
|
|
Ejector
stroke |
mm
|
65.5
|
|
Hydraulic
system |
|
Casting
cycle |
cycle/min
|
12
|
|
Unit pressure
|
kgs/ cm2
|
90
|
|
Oil tank
capacity |
litter
|
200
|
|
Electrical
system |
|
Motor style
|
hp
|
15
|
|
Electric
and power |
V/Hz
|
220V-380V
/ 50-60Hz |
|
Mhine
measure |
|
Overall
dimensions |
mm |
3930
x 1250 x 2250
|
|
Machine
weight (net) |
Ton
|
5 |
|
|
|
|
|
|
