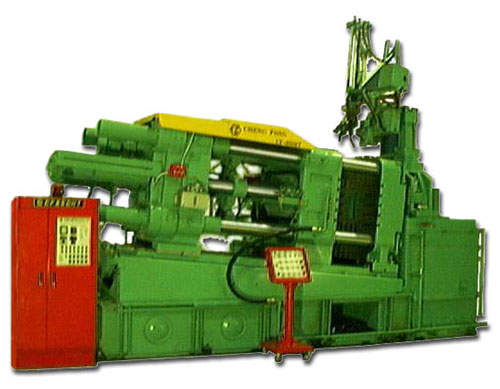

CF-650HT
Heating Chamber Fully Automatic Die Casting Machine
|
|
High Image
SPECIFICATION
|
Clamping system |
|
Locking force |
Ton |
650 |
|
Tie bar diameter |
mm |
160 |
|
Die platen size (H*V) |
mm |
1250 x 1250 |
|
Between tie bar (H*V) |
mm |
760 x 760 |
|
Die plunger stroke |
mm |
710 |
|
Thickness of die |
mm |
350 ~ 800 |
|
Injection system
|
|
Injection force |
Ton |
13.8 |
|
Injection stroke |
mm |
200 |
|
Plunger tip diameter |
mm |
100 |
Casting capacity (70%) |
kgs |
7.6 |
|
Melting pot capacity |
kgs |
1300 |
|
Nozzle to center |
mm |
中心 |
|
Casting area |
cm2 |
3672 |
|
Casting pressure |
kgs/
cm2 |
177 |
|
Ejector force
|
|
Ejector force |
Ton |
20.4 |
|
Ejector stroke |
mm |
145 |
|
Hydraulic system
|
|
Casting cycle |
cycle/min |
4 |
|
Unit pressure |
kgs/
cm2 |
90 |
|
Oil tank capacity |
litter |
1125 |
|
Electrical system
|
|
Motor style |
hp |
50 |
|
Electric and power |
V/Hz |
220V~380V / 50~60Hz |
|
Mhine measure
|
|
Overall dimensions |
mm |
6500
x 2100 x 3000
|
|
Machine weight (net) |
Ton |
50 |
|
|
|
|
|
|
