CF-90HT
Heating Chamber Fully Automatic Die Casting Machine
|
|

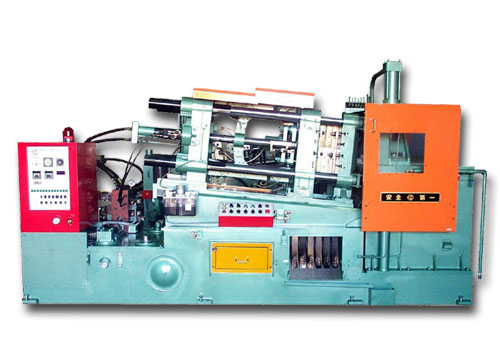

High Image
¡@
SPECIFICATION
|
Clamping system
|
|
Locking force
|
Ton |
90 |
|
Tie bar diameter
|
mm |
75 |
|
Die platen size
(H*V) |
mm |
600 x 600
|
|
Between tie bar
(H*V) |
mm |
385 x 385
|
|
Die plunger stroke
|
mm |
225 |
|
Thickness of die
|
mm |
150 ~ 400
|
|
Injection system
|
|
Injection force
|
Ton |
7 |
|
Injection stroke
|
mm |
153 |
|
Plunger tip diameter
|
mm |
55 |
Casting capacity
(70%) |
kgs |
1.8 |
|
Melting pot capacity
|
kgs |
330 |
|
Nozzle to center
|
mm |
-55 |
|
Casting area
|
cm2 |
303 |
|
Casting pressure
|
kgs/ cm2
|
297 |
|
Ejector force
|
|
Ejector force
|
Ton |
6.4 |
|
Ejector stroke
|
mm |
70 |
|
Hydraulic system
|
|
Casting cycle
|
cycle/min
|
10 |
|
Unit pressure
|
kgs/ cm2
|
90 |
|
Oil tank capacity
|
litter
|
245 |
|
Electrical
system |
|
Motor style
|
hp |
15 |
|
Electric and power
|
V/Hz |
220V~380V / 50~60Hz
|
|
Mhine measure
|
|
Overall dimensions
|
mm |
4400
x 1650 x 2100
|
|
Machine weight
(net) |
Ton |
6.3 |
|
¡@

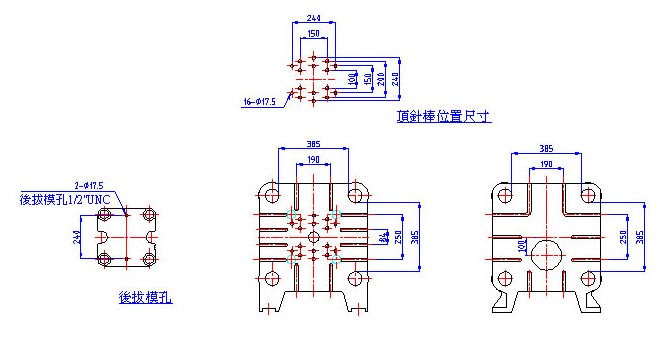

DIMENSION
|
¡@
|
|
|
|
|
|
|
